High power power frequency sine wave solar charging inverter 12V/24V to 220V vehicle photovoltaic inverter
Specifications:
| DC Voltage | 12V or 24V or 36V or 48V |
| Voltage Range | 10-15VDC or 21-30VDC or 42-60VDC |
| NO Load Current Draw | <1A |
| Efficiency | >90% |
| DC Connector | Cables With Clips or Car Adaptor |
| AC Voltage | 100/110/120VDC
/AC or 220/230/240VDC
/AC |
| Continuous Power | 3000W |
| Surge Power | 6000W |
| Waveform | Pure Sine Wave |
| Frequency | 50HZ or 60HZ |
| AC Regulation | 3% |
kinds of protections:
1.Short circuit production.
When the load is short circuit, the inverter will stop working.
2. High temperature production.
When the use environment is stuffy, the heat of the inverter can not be radiated. The temperature is above the rated temperature, the inverter will stop working.
3. High voltage protections.
The battery voltage is above the rated voltage of the inverter, the inverter will stop working.
4. Low voltage protections
The battery voltage falls during the usage. When it is lower than the rated voltage, the inverter will automatically cut the input voltage for the self protection.
5. Surge protection.
It can avoid the DC high voltage surging attack upon the electronic components inside.
6. Overload protection
When the appliances power is higher than the inverters power, the inverter will stop working for self protection.
7. Over current Protection
When the appliances current is bigger than the inverter current, the protection components on the board will be cut automatically for self protection.
8.Fuse protection.
When the appliances resistance is bigger than inverters, the fuses on the socket will be automatically cut off for self protection.
9. Reverse protection
It can avoid the accidents of burning the inverter if the positive and the negative poles are reverse connected.

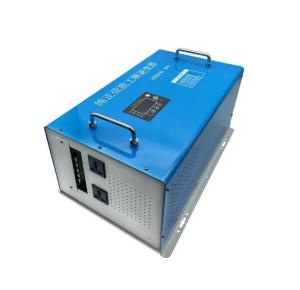

Product Display:
FAQ:
Q1:How to calculate the working hours load requires battery size configuration?
A1:We will usually have a formula to calculate, but it is not one hundred percent accurate because there is also a Battery.The old condition of the battery has some disadvantages, so this is just a reference to the value:
Working hours = battery capacity * battery voltage * 0.8/load power (T = AH * V * 0.8/W)
Q2:What about the Delivery time?
A2: 5 days for samples; 7-15 days for bulk orders.
Q3:How to choose the right inverter?
A3: Tell us your demand, our sale will recommend suitable inverter for you.
Q4:Q4: What is the warranty of the inverter?
A4: 2 years warranty.
